IR-894 Support Image PC Offline Analysis Outdoor Thermal Imaging Thermal Imaging Camera

Dear user

Hello! Thank you for purchasing our instrument. To ensure that you can better use it, we remind you to carefully read the instructions before use, and suggest that you keep it properly for future use.

 This warranty is the only compensation content available to users, and does not contain any other express or implied warranties. We shall not be responsible for any special, indirect, incidental or subsequent damage or loss, including data loss caused by any reason or reasoning.

 Due to certain countries or states that do not allow limitations on the duration, exclusion, and limitation of implied warranties for accidental or subsequent damage, the above limitations and provisions on liability may not apply to every buyer.

 The user should promise to be familiar with the application fields and occasions of this product, and the purchase itself is deemed to be known to the user about their suitability for the use of the product.

Introduction

For a long time, infrared thermal imaging detection

technology has become an important means to ensure

Industrial safety in developed countries.

• The application field includes electric power, metallurgy, petro-chemistry, machinery,coal, traffic, fire control and national defense, etc.
• It can not only carries out real-time detection at high voltage, high current and high speed operation to perform real-time detection for production and instrument but also need not power off the power supply, stop the machine or stop the production to find the potential problems and prevent occurrence of malfunction.
• The “non contact” modern detection technology is safe,

reliable and quick.

• It is a type of technical revolution compared with traditional contact detection method.

Overview

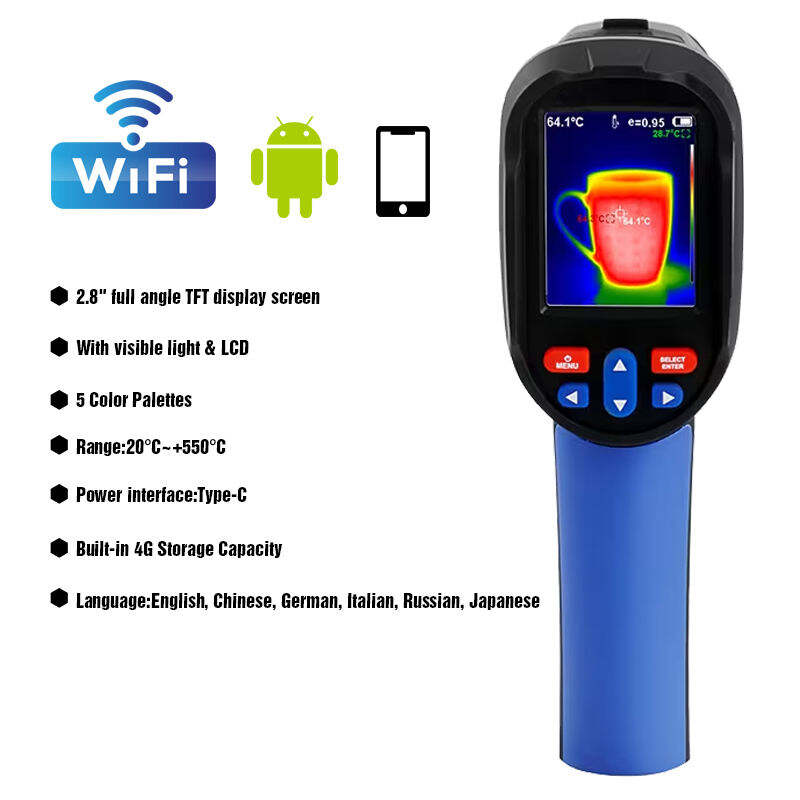

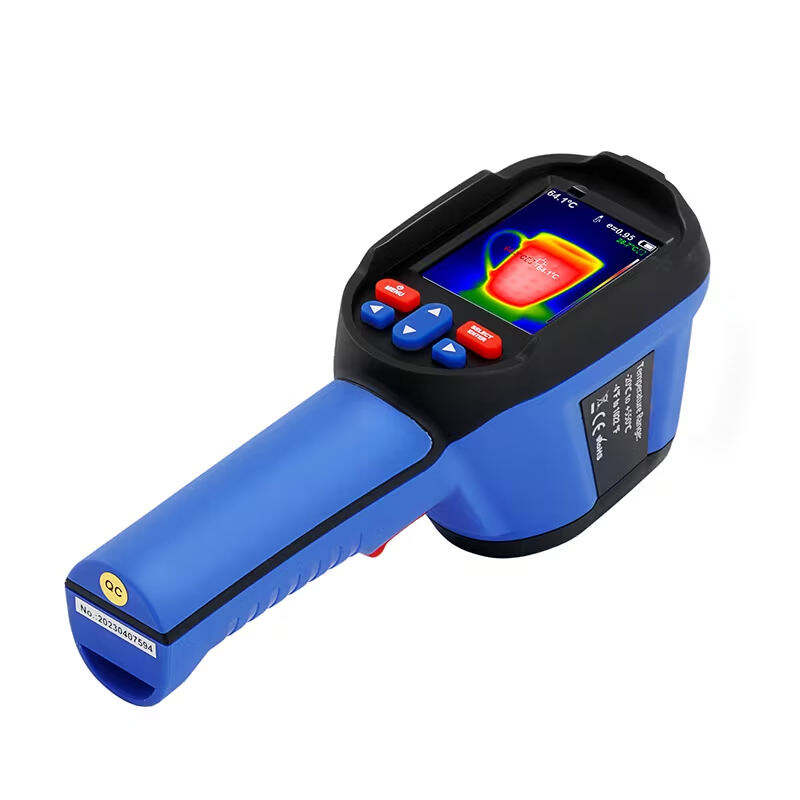

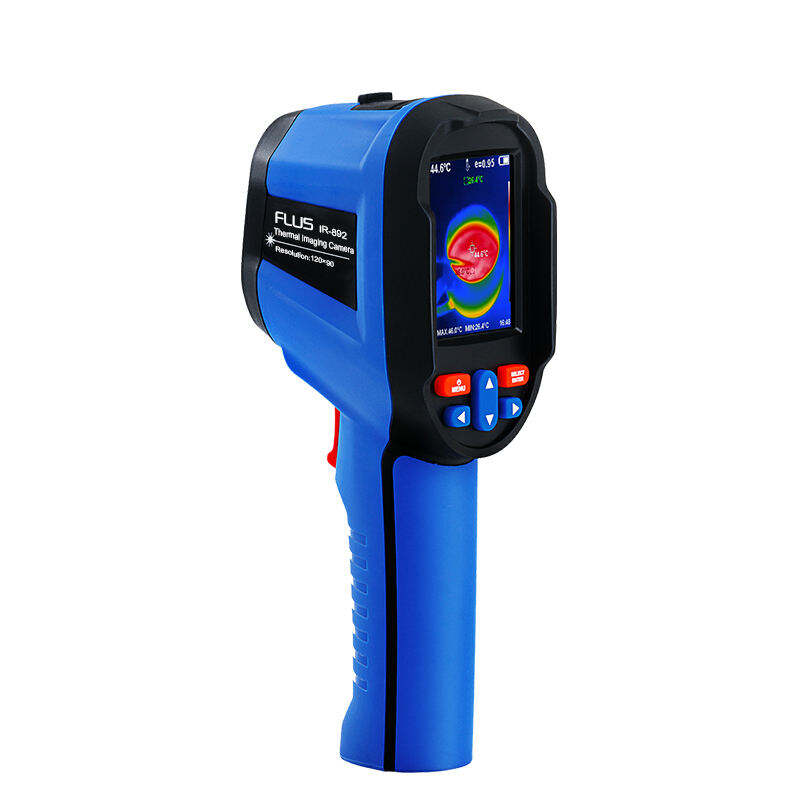

• This product is an infrared camera that integrates surface temperature measurement and real-time thermal image.
• The traditional inferred thermometer needs to measure every component one by one while it is not necessary for infrared imaging camera, thus saving time.
• The potential problems may be displayed on color display screen clearly.
• Moreover, the central point measurement cursor is used to locate quickly and accurately to measure the temperature of the target object.
• In order to increase the differentiation, the product is provided with a visible light camera.
• The thermal images and visible images are stored in the device and can be read through USB or stored in a computer to generate a report or for print.
• With small volume, the product is easy to operate and has strong function.
• It is the ideal selection for electric power, electronic manufacturing,industrial inspection and other fields.

The following major functions increase the product’s accuracy and usability:

• The radiation coefficient may be adjusted to increase the measurement accuracy of objects with half reflection surface.
• The highest temperature and lowest temperature cursor may guide the users to the areas with highest and lowest temperature of the thermal images.

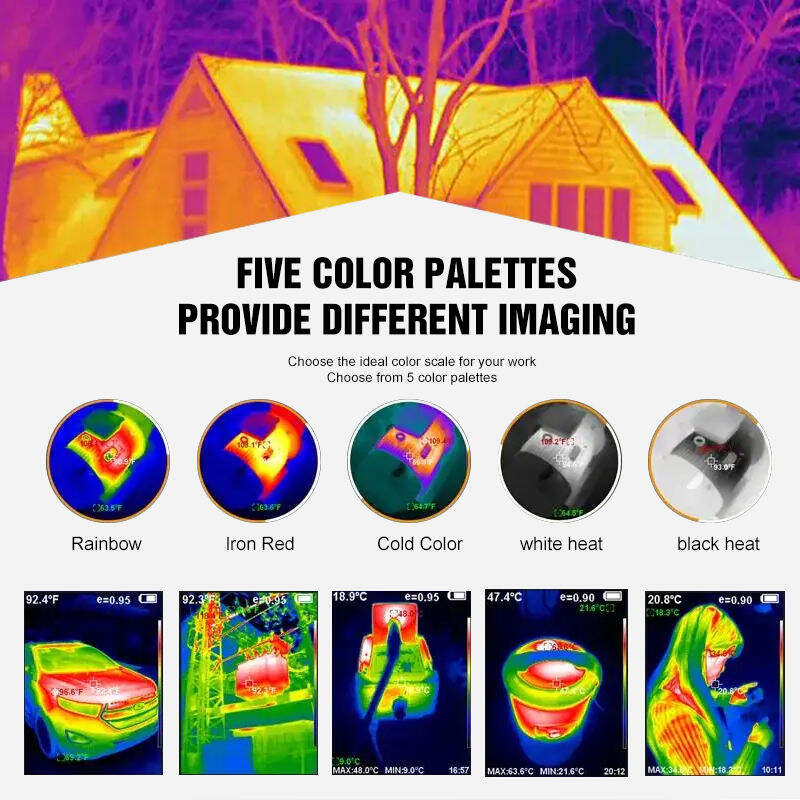

• The selectable color palette

Accessories

• One Type-C USB Cable
• One adaptor
• One User’s Manual

Technical Specification
